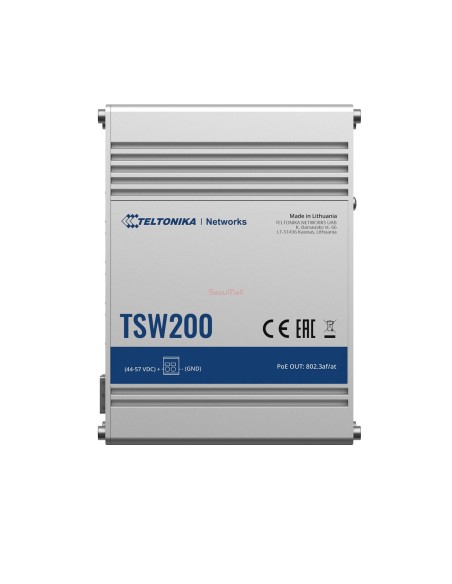

Switch Industriel 8 ports GB et 2 SFP TSW200
TSW200 est un commutateur industriel non géré de Teltonika Networks.
- Le TSW200 est équipé de 2 ports SFP pour la communication fibre optique longue distance et de 8 ports Gigabit Ethernet, qui prennent en charge les normes IEEE802.af et IEE802.3at Power-over-Ethernet.
- Classé équipement d'alimentation électrique (PSE), il permet de centraliser la fourniture d'électricité, en délivrant jusqu'à 30W par unité et en réduisant les coûts d'installation électrique. Il dispose de ports Ethernet 10/100/1000 Mbps, offrant une solution de bande passante rentable pour votre industrie Ethernet.
Caractéristiques :
ETHERNET | |
LAN | 8 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
Fiber | 2 x SFP ports |
POE | |
PoE ports | Port 1 - 8 |
PoE standards | 802.3af and 802.3at |
PoE Max Power per Port (at PSE) | 30 W |
Total PoE Power Budget (at PSE) | 240 W |
PERFORMANCE SPECIFICATIONS | |
Bandwidth (Non-blocking) | 20 Gbps |
Packet buffer | 128 KB |
MAC address table size | 2K entries |
Jumbo frame support | 9216 bytes |
POWER | |
Connector | 2 pin industrial DC power socket |
Input voltage range | 7-57 VDC |
Input voltage range for PoE | 44-57 VDC |
Power consumption (idle/max no PoE/max) | 1,81 W/5.5 W/245.5 W |
PHYSICAL INTERFACES (PORTS, LEDS) | |
Ethernet | 8 x RJ45 ports, 10/100/1000 Mbps |
Fiber | 2 x SFP ports |
Status LED’s | 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s |
Power | 1 x 2 pin industrial DC power socket |
Ground | 1 x Grounding screw |
PHYSICAL SPECIFICATION | |
Casing material | Full aluminum housing |
Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
Weight | 456 g |
Mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
OPERATING ENVIRONMENT | |
Operating temperature | -40 °C to +75 °C |
Operating humidity | 10 % to 90 % non condensing |
Ingress Protection Rating | IP30 |
